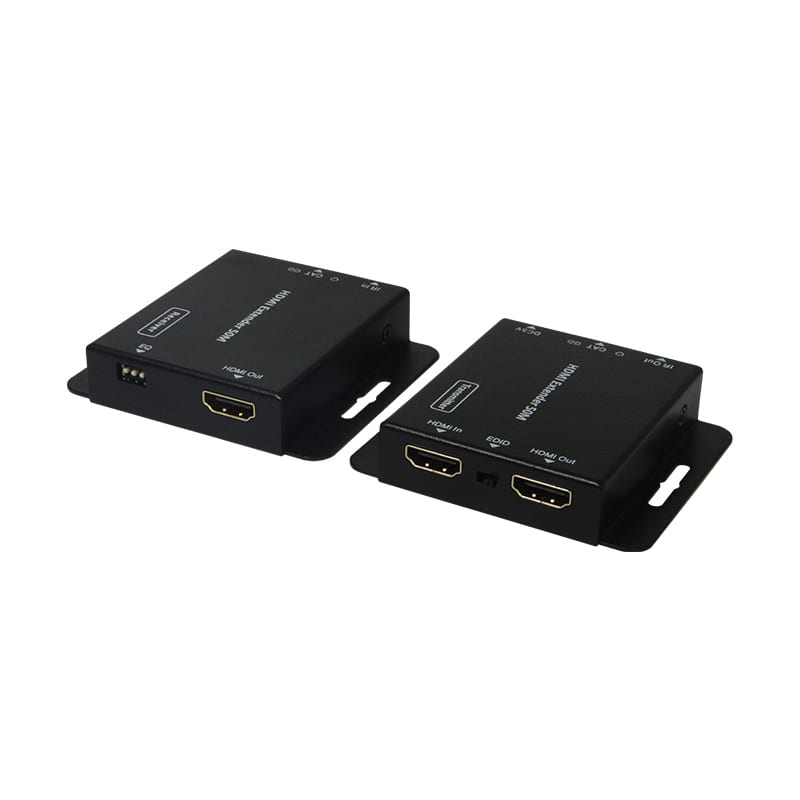

HDCVT HDMI Extender 50m slim with IR POE

HDCVT HDMI Extender 50m slim with IR POE

R 655.00 ZAR
R 655.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Share and Earn Commission



Features:

  • Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable
  • Allows for cascading via additional HDMI loop out port
  • Supports Power over cable function
  • Extends 1080p resolution up to 50m over a single Cat5e or Cat6 cable
  • Please note that you will require solid copper CAT5e/CAT6 cable for this item.
  • Works with HDMI and HDCP compliant devices
  • Supports up to 1080p High Definition resolution
  • Compact design for an easy and flexible installation
Technical
HDMI Compliance HDMI 1.4b
HDCP Compliance HDCP 1.4
Video Bandwidth 4.95 Gbps
Video Resolutions up to 1080P@60Hz
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 10-bit, 12-bit
Audio Formats PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+
ESD Protection Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs TX: 1x HDMI Type A [19-pin female] RX: 1x RJ45 [HDMI & Propriety Data] 1x 3.5mm Stereo Mini-jack [Infrared Receiver]
Outputs TX: 1x HDMI Type A [19-pin female] 1x RJ45 [HDMI & Propriety Data] 1x 3.5mm Stereo Mini-jack [Infrared Emitter] RX: 1x HDMI Type A [19-pin female]
Mechanical
Housing Metal Enclosure
Dimensions TX/RX:60mm [W] x 60mm [D] x 15mm [H]
Net Weight TX/RX: 300g
Power Supply Input: AC100 - 240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption (Max) TX: 1.5W RX: 1W
Operation Temperature 32 - 104°F / 0 - 40°C
Storage temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)
